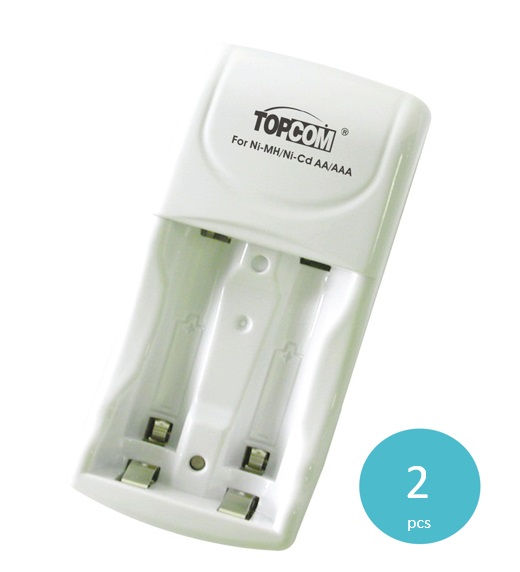

SC-168 Mini charger for AA/AAA Ni-MH battery
-
Input: AC 100-240V 50-60 Hz
-
For 2pcs AA / AAA Ni-MH Battery
-
Charging current: 200mA max.
-
Input: AC 100-240V 50-60 Hz
-
For 2pcs AA / AAA Ni-MH Battery
-
Charging current: 200mA max.
產品說明
Mini SC-168 Ni-MH battery charger which is easy to carry with fashionable and modern designed appearance. It is suitable for AA/AAA Ni-MH or Ni-Cd rechargeable batteries.
Electrical Spec.
|
Items
|
Specification
|
Comment
|
|
|
Input power supply |
Voltage: AC 100-240V
|
Rating spec
|
|
|
Frequency: 50-60Hz
|
|
||
|
|
Power consumption: ≦0.6W
Power consumption: ≦3.5W |
No load
Load |
|
|
Output voltage and current
|
Voltage: DC 2.82 V
|
|
|
|
Current: 200 mA max.
|
|
||
|
Charging time
|
AA (2000mAH) *2
|
Around 10 hours
|
depending on the resistance of battery
|
|
AAA (800mAH)*2
|
Around 4.0 hours
|
||
|
Applicable battery
|
Ni-MH / Ni-Cd rechargeable battery
|
|
|
|
Charging indication light |
1. No battery…………without led indication
2. During charge….…. red led indicator light up |
|
|
Product Main Features
1. Universal input AC 100-240V for worldwide use.

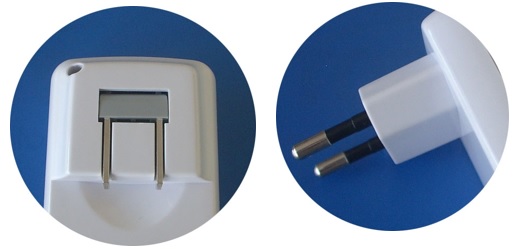

2. Foldable US plug and fixed EU plug for easy charging during travel , house or office.
3. Equipped with 1 charging channel.
4. Normal constant current to fully charge batteries safely.
5. For charging 2 pcs AA or AAA Ni-MH/Ni-Cd rechargeable batteries simultaneously
6. Automatically trickle charge after full charge.
2. Foldable US plug and fixed EU plug for easy charging during travel , house or office.
3. Equipped with 1 charging channel.
4. Normal constant current to fully charge batteries safely.
5. For charging 2 pcs AA or AAA Ni-MH/Ni-Cd rechargeable batteries simultaneously
6. Automatically trickle charge after full charge.
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
|
|
2
|
Middle cover
|
ABS
|
－
|
|
|
3
|
Base
|
ABS
|
－
|
|
|
4
|
Housing dimension
|
US:110(L) * 45(W) * 34(H)
EU:110(L) * 45(W) * 68(H) |
mm
|
|
|
5
|
Housing color
|
Injection white cover and base
|
－
|
|
|
6
|
Input pins
|
Foldable US plug or Fixed EU plug
|
－
|
|
|
7
|
Weight
|
75
|
g
|
For charger only
|
