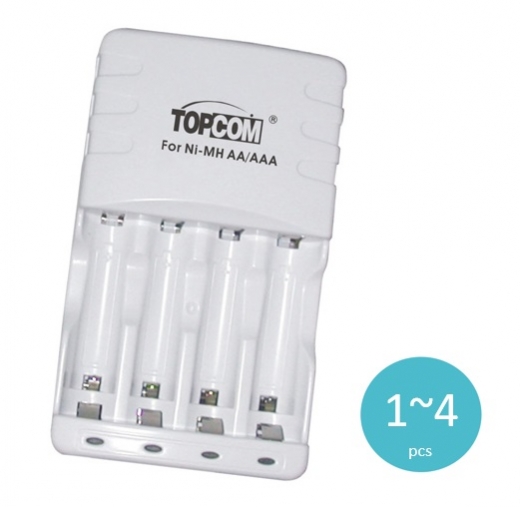

SC-308 quick charger for individual 1 to 4 pcs Ni-MH battery
- Input: AC 100-240V 50-60 Hz
- For 1 to 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 150 mA each port
- Input: AC 100-240V 50-60 Hz
- For 1 to 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 150 mA each port
產品說明
Feature
SC-308 smart charger configured to charge 1 to 4 pcs Ni-MH rechargeable batteries. It has smart battery voltage detection for fully charge and build in activate battery/pre-charging function to increase rechargeable battery lifespan. The trickle charge helps maintain the charging without danger of overheating. In addition, it provides constant current to fully charge batteries safely.
Electrical spec
|
Items
|
Specification
|
Comment
|
|
Input power supply |
Voltage: 100-240VAC
|
Rating spec
|
|
Frequency: 50-60Hz
|
|
|
|
|
Power consumption: ≦2.2W
|
No load
|
|
Output voltage and current
|
Voltage: DC1.5V
|
|
|
Current:
AA/AAA:150mA each port while 4 pcs charging at the same time |
|
|
|
Applicable battery
|
Ni-MH battery
|
|
|
Charging indication light |
1. No battery…………Green light. 2. During charge….….Red light. |
|
Product Main Features
1. Universal input AC100-240V for worldwide use.
2. Individually monitored charging channels for charging 1-4pcs of AA/AAA, Ni-Cd/NI-MH batteries
3. Normal constant current to fully charge batteries safely.
4. Smart voltage detection for fully charge
5. Build in activate battery function / pre-charging function
6. 4 Dual color LED indicators
7. Automatic trickle charge after full charge
8. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
2. Individually monitored charging channels for charging 1-4pcs of AA/AAA, Ni-Cd/NI-MH batteries
3. Normal constant current to fully charge batteries safely.
4. Smart voltage detection for fully charge
5. Build in activate battery function / pre-charging function
6. 4 Dual color LED indicators
7. Automatic trickle charge after full charge
8. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
|
|
2
|
Base
|
ABS
|
－
|
|
|
3
|
Housing dimension
|
Foldable US plug: 110*65*27
Fixed EU plug : 110*65*67 |
mm
|
|
|
4
|
Housing color
|
White or Black
|
－
|
|
|
5
|

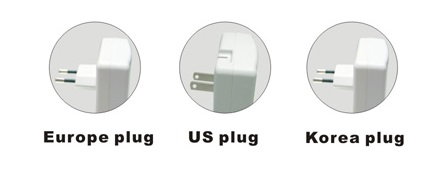

Input pins
|
US plug
|
－
|
|
|
6
|
Weight
|
97
|
g
|
|
