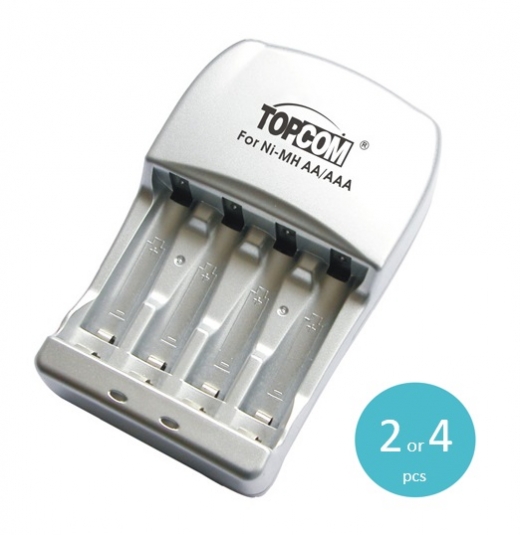

SC-320 Smart charger for Ni-MH battery
- Input: AC 100-240V 50-60 Hz
- For 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 800mA max.
- Input: AC 100-240V 50-60 Hz
- For 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 800mA max.
產品說明
Topcom best-selling charger SC-320 can charge 2 or4 pcs AA/AAA Ni-MH batteries.
This charger is not only controlled by battery voltage detection to prevent overcharge or abnormal use but also built in activate battery function for increasing battery lifespan. It would be your excellent choice!.
Electrical spec
|
Items
|
Specification
|
Comment
|
|
|
Input power supply |
Voltage: 100-240VAC
|
Rating spec
|
|
|
Frequency: 50-60Hz
|
|
||
|
|
Power consumption: ≦2.2W
|
No load
|
|
|
Output voltage and current
|
Voltage: DC 2.82 V
|
|
|
|
Current: DC 800mA max.
|
|
||
|
Charging time
|
AA (2000mAH) *2
|
Around 3.5 hours
|
Stand on battery quality
|
|
AA (2000mAH) *4
|
Around 6 .0 hours
|
||
|
AAA (800mAH)*2
|
Around 1.5 hours
|
||
|
AAA (800mAH)*4
|
Around 3.0 hours
|
||
|
Applicable battery
|
Ni-MH battery
|
|
|
|
Charging indication light |
1. No battery…………Green light.
2. During charge….….Red light. 3. Finish charge…...…Green light. |
|
|
Product Main Features
1. Universal input AC 100-240V for worldwide use.
2. Equipped with 2 charging channels.
3. Can charging for 2 or 4pcs AA /AAA Ni-MH rechargeable batteries.
4. Current supply control by battery voltage detection to prevent overload and abnormal use.
5. Build in activate battery function / pre-charging function.
6. 2 dual color LED indicator for charging status.
7. Automatically trickle charge after full charge
2. Equipped with 2 charging channels.
3. Can charging for 2 or 4pcs AA /AAA Ni-MH rechargeable batteries.
4. Current supply control by battery voltage detection to prevent overload and abnormal use.
5. Build in activate battery function / pre-charging function.
6. 2 dual color LED indicator for charging status.
7. Automatically trickle charge after full charge
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
94V-0
|
|
2
|
Base
|
ABS
|
－
|
94V-0
|
|
3
|
Housing dimension
|
110 x 65 x 60
|
mm
|

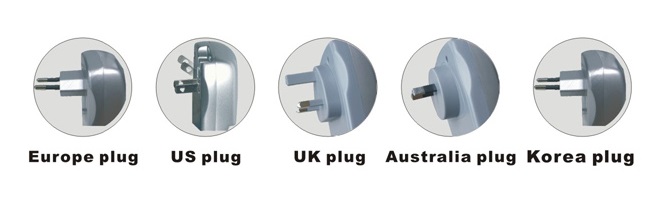

Fixed EU/ Fixed India/ Australasia /UK plug
|
|
4
|
Housing dimension
|
110 x 65 x 27
|
mm
|
Foldable US plug
|
|
5
|
Housing color
|
Front cover : silver or white color by spray paint
Black cover: Injection gray color |
－
|
|
|
6
|
Weight
|
105
|
g
|
|
