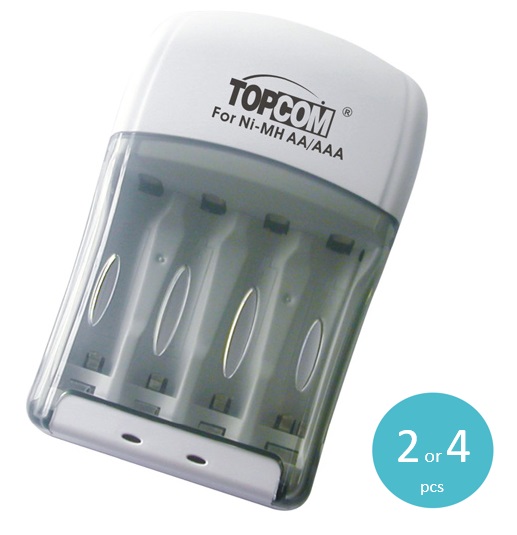

SC-330 Smart charger for Ni-MH battery

  • SC-330 Smart charger for Ni-MH battery 1

SC-330 Smart charger for Ni-MH battery

  • Input: AC 100-240V 50-60 Hz
  • For 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
  • Charging current: 800mA max.
  • Input: AC 100-240V 50-60 Hz
  • For 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
  • Charging current: 800mA max.
產品說明

The quick AA/AAA rechargeable battery charger SC-330 can charge 2 or4 pcs AA/AAA Ni-MH batteries. It is controlled by advanced battery voltage detection which is similar to Microprocessor with charging protection of fast charger. This charger also with built in activate battery function which increases rechargeable battery lifespan. It's great for your digital cameras, toys, and other high drain devices.

Electrical spec


Items

Specification

Comment


Input power supply

Voltage: 100-240VAC

Rating spec

Frequency: 50-60Hz





Power consumption: ≦2.2W

No load

Output voltage and current

Voltage: DC 2.82 V



Current: DC 800mA max.



Charging time

AA (2000mAH) *2

Around 3.5 hours

Stand on battery quality

AA (2000mAH) *4

Around 6 .0 hours

AAA (800mAH)*2

Around 1.5 hours

AAA (800mAH)*4

Around 3.0 hours

Applicable battery

Ni-MH battery




Charging indication light


1. No battery…………Green light.
2. During charge….….Red light.
3. Finish charge…...…Green light.





Product Main Features


1.          Universal input AC 100-240V for worldwide use.
2.          Equipped with 2 charging channels.
3.          Can charging for 2 or 4pcs AA /AAA Ni-MH rechargeable batteries.
4.          Current supply control by battery voltage detection to prevent overload and abnormal use.
5.          Build in activate battery function / pre-charging function.
6.          2 dual color LED indicator for charging status.
7.          Automatically trickle charge after full charge


Mechanical Specification



No

Item

Spec

Unit

Comment

1

Front cover

ABS

-

94V-0

2

Base

ABS

-

94V-0

3

Housing dimension

110 x 65 x 60

mm

Fixed EU/ Fixed India/ Australasia /UK plug

4

Housing dimension

110 x 65 x 27

mm

Foldable US plug

5

Housing color

Front cover : silver or white color by spray paint

Black cover: Injection gray color

-



6

Weight

97

g
