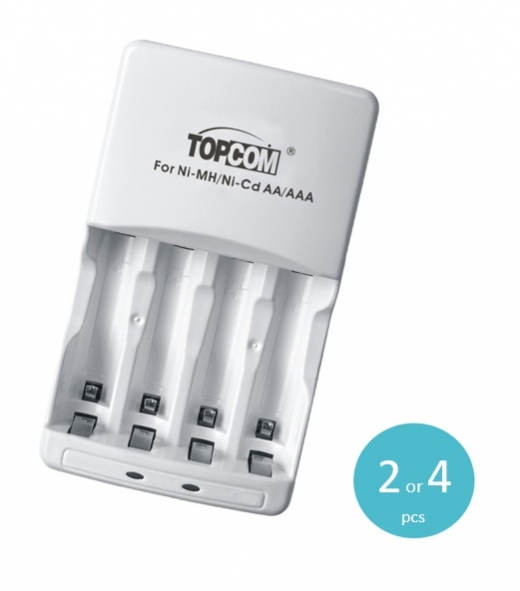

SC-350 battery charger for 2 or 4 pcs Ni-MH battery
- Input: AC 100-240V 50-60 Hz
- For 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 200 mA
- Input: AC 100-240V 50-60 Hz
- For 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 200 mA
產品說明
Feature
SC-350 smart charger is equipped with 2 charging channels which can charge 2 or 4 pcs of AA/AAA rechargeable batteries. It's constant current allows batteries to be fully charged safely overnight! Its serviceable and user-friendly design increase the battery life and save your money.
Electrical spec
|
Items
|
Specification
|
Comment
|
|
Input power supply |
Voltage: 100-240VAC
|
Rating spec
|
|
Frequency: 50-60Hz
|
|
|
|
|
Power consumption: ≦2.2W
|
No load
|
|
Output voltage and current
|
Voltage: DC2.82V
|
|
|
Current:
AA:200 mA AAA:200 mA |
|
|
|
Applicable battery
|
Ni-MH battery
|
|
|
Charging indication light |
1. No battery…………no light.
2. During charge….….red light. |
|
Product Main Features
1. Worldwide input voltage AC100-240V. Foldable EU plug for easy carry and storage.
2. Two charging channels for charging2 or 4pcs AA /AAA Ni-MH rechargeable batteries at the same time
3. Two red LED indicators.
4. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
5. Normal constant current to fully charge batteries safely.
2. Two charging channels for charging2 or 4pcs AA /AAA Ni-MH rechargeable batteries at the same time
3. Two red LED indicators.
4. Charging different brands AA/AAA Ni-MH rechargeable batteries at the same time.
5. Normal constant current to fully charge batteries safely.
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
|
|
2
|
Base
|
ABS
|
－
|
|
|
3
|
Housing dimension
|
Foldable US plug : 110*65*33
Fixed EU plug : 110*65*67 |
mm
|
|
|
4
|
Housing color
|
White or Black
|
－
|
|
|
5
|
Input pins
|

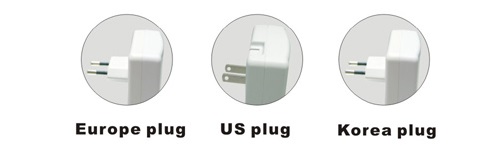

Foldable US plug or Fixed EU plug
|
－
|
|
|
6
|
Weight
|
97
|
g
|
|
