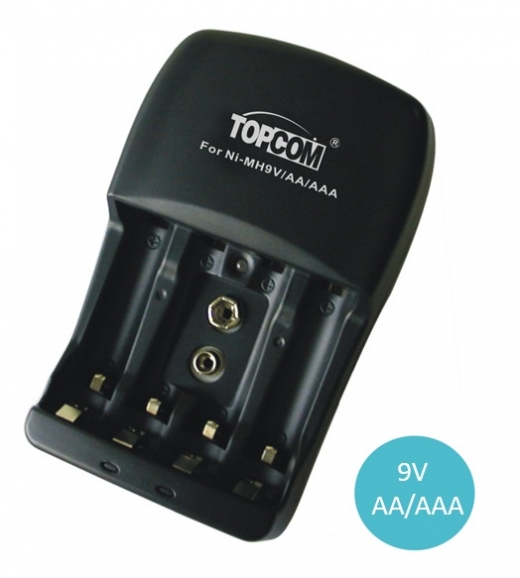

SC-390 charger for AA/AAA/9V Ni-MH rechargeable battery
- 1 pc 9V Ni-MH rechargeable Battery
- 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 9V :15mA / AA/AAA : 800mA max.
- 1 pc 9V Ni-MH rechargeable Battery
- 2 or 4 pcs AA / AAA Ni-MH rechargeable Battery
- Charging current: 9V :15mA / AA/AAA : 800mA max.
產品說明
QC-390 multiple function battery charger which enables quick and optimum charging to AA, AAA, and 9V rechargeable batteries. With 2 LED indicators and voltage detection functions, this charger is reliable, user-friendly, and ideal for use in the home, office, or on a journey.
Please take into consideration and feel free to contact us for questions.
Electrical spec
|
Items
|
Specification
|
Comment
|
|
|
Input power supply |
Voltage: 100-240VAC
|
Rating spec
|
|
|
|
Frequency: 50-60Hz
|
|
|
|
|
Power consumption: ≦2.2W
|
No load
|
|
|
Output voltage and current
|
Voltage: DC 2.82 V
|
|
|
|
Current: AA/AAA: 800 mA Max.
9V: 15mA |
|
||
|
Charging time
|
AA (2000mAH) *2
|
Around 3.0 hours
|
Depending on battery quality
|
|
AA (2000mAH) *4
|
Around 6 .0 hours
|
||
|
AAA (800mAH)*2
|
Around 1.5 hours
|
||
|
AAA (800mAH)*4
|
Around 3.0 hours
|
||
|
Applicable battery
|
Ni-MH rechargeable battery
|
|
|
|
Charging indication light |
1. No battery…………green light.
2. During charge….….red light. Finish charge…...… green light. 1 red LED indicators for 9V |
|
|
Product Main Features
1. Universal input AC 100-240V for worldwide use.
2. Equipped with 2 charging channels for 2 or 4pcs AA /AAA Ni-MH rechargeable batteries.
3. 1 charging channel for 9V Ni-MH rechargeable battery.
4. Current supply control by battery voltage detection to prevent overload and abnormal use.
5. Build in activate battery function / pre-charging function.
6. Two dual led indicators for AA /AAA Ni-MH rechargeable batteries;
7. a red led indicator for 9V Ni-MH rechargeable battery.
8. Automatically trickle charge after full charge
9. Important Safety Instruction
2. Equipped with 2 charging channels for 2 or 4pcs AA /AAA Ni-MH rechargeable batteries.
3. 1 charging channel for 9V Ni-MH rechargeable battery.
4. Current supply control by battery voltage detection to prevent overload and abnormal use.
5. Build in activate battery function / pre-charging function.
6. Two dual led indicators for AA /AAA Ni-MH rechargeable batteries;
7. a red led indicator for 9V Ni-MH rechargeable battery.
8. Automatically trickle charge after full charge
9. Important Safety Instruction
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front cover
|
ABS
|
－
|
|
|
2
|
Back cover
|
ABS
|
－
|
|
|
3
|
Housing dimension
|
110 x 65 x 60
|
mm
|

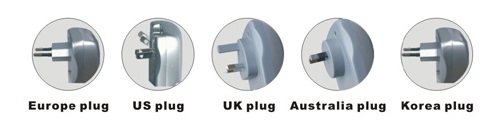

Fixed EU/ Fixed India/ Australasia /UK plug
|
|
4
|
Housing dimension
|
110 x 65 x 27
|
mm
|
Foldable US plug
|
|
5
|
Housing color
|
black
|
－
|
|
|
6
|
Weight
|
100
|
g
|
|
