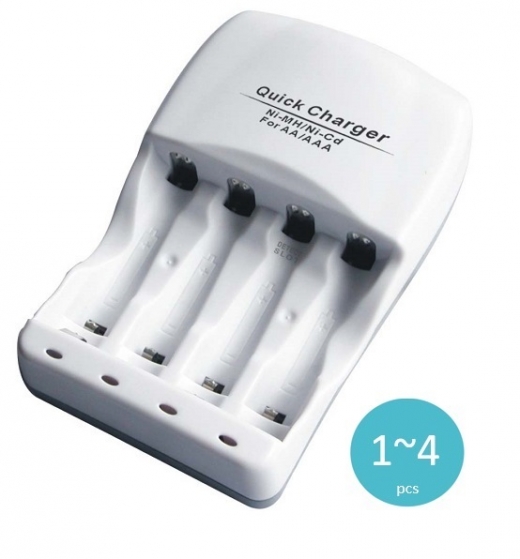

QC-630 rapid charger for1~4pcs Ni-MH rechargeable batteries
- Charging current: 2000 mA Max.
- Rapid Battery Charger
- For 1~4pcs AA /AAA Ni-MH rechargeable batteries
- Charging current: 2000 mA Max.
- Rapid Battery Charger
- For 1~4pcs AA /AAA Ni-MH rechargeable batteries
產品說明
Feature
QC-630 Ni-MH battery charger is a new generation designed, developed to meet the demand of power solution for modern consumer electronic products like digital camera, digital music players, radios, radio controlled cars and electronic toys and all other high draining electronic and electrical devices which are normally powered by rechargeable AA or AAA batteries.
Unique design with smart microprocessor allows charging different brands and capacity batteries at the same time and reaching full charge within a short time. It will not cause any bad effect as removing some of batteries individually from the charger while LED indicators turn green. Safe and convenient!
Unique design with smart microprocessor allows charging different brands and capacity batteries at the same time and reaching full charge within a short time. It will not cause any bad effect as removing some of batteries individually from the charger while LED indicators turn green. Safe and convenient!
Electrical spec
|
Items
|
Specification
|
Comment
|
||
|
Input power supply |
Voltage: AC 100-240V
|
Rating spec
|
||
|
Frequency: 50-60Hz
|
No load
|
|||
|
Output voltage and current
|
Voltage: DC1.5V
|
|
||
|
Current: DC2000mA |
AA*1: 2000mA
|
|
||
|
AA*2: 1000mA
|
||||
|
AAA*1: 1100mA
|
||||
|
AAA*2: 550mA
|
||||
|
Applicable battery
|
AA /AAA Ni-MH battery
|
|
||
|
Fully charge time |
AA (2000mAH) *1
|
60 minutes
|
|
|
|
AA (2000mAH) *2
|
120 minutes
|
|||
|
AA (2000mAH) *3
|
180 minutes
|
|||
|
AA (2000mAH) *4
|
240 minutes
|
|||
|
AAA (800mAH)*1
|
50 minutes
|
|||
|
AAA (800mAH)*2
|
100 minutes
|
|||
|
AAA (800mAH)*3
|
150 minutes
|
|||
|
AAA (800mAH)*4
|
200 minutes
|
|||
|
Charging indication light |
1. No battery…………no light.
2. During charge….….red light. 3. Finish charge…...…green light. 4. Battery error…...….flashing red light and stop charge |
|
||
|
Battery power level display
|
Red…...……...…power under 50%
Green…... …...…power over 50% |
|
||
|
|
|
|
|
|
Product Main Features
1. Individually monitored charging channels for charging 1 to 4 pcs AA / AAA Ni-MH rechargeable batteries.
2. Smart 12 bits Microprocessor to increase rechargeable battery lifespan.
3. Detected by -ΔV, 0ΔV for fully charge.
4. Overtime, overload, overheat protection.
5. Non-chargeable battery detection.
6. 4 dual color LED indicators.
7. Automatic trickle charge after full charge.
8. Dual color LED Indicator for battery power level detection:
2. Smart 12 bits Microprocessor to increase rechargeable battery lifespan.
3. Detected by -ΔV, 0ΔV for fully charge.
4. Overtime, overload, overheat protection.
5. Non-chargeable battery detection.
6. 4 dual color LED indicators.
7. Automatic trickle charge after full charge.
8. Dual color LED Indicator for battery power level detection:
Mechanical Specification
|
No
|
Item
|
Spec
|
Unit
|
Comment
|
|
1
|
Front /Base cover
|
ABS
|
－
|
94V-0
|
|
2
|
Housing dimension
|
110 x 65 x 60
|
mm
|

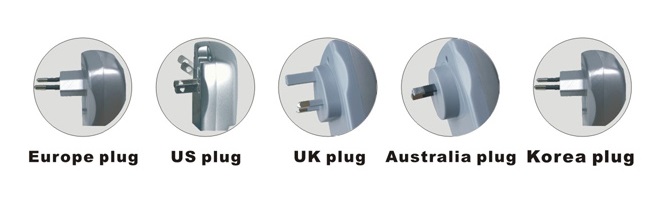

Fixed EU/ Fixed India/ Australasia /UK plug
|
|
3
|
Housing dimension
|
110 x 65 x 27
|
mm
|
Foldable US plug
|
|
4
|
Housing color
|
white cover+gray base
|
－
|
|
|
5
|
Weight
|
97
|
g
|
|
